Producing Drop Cables with a Compact FTTH Production Line

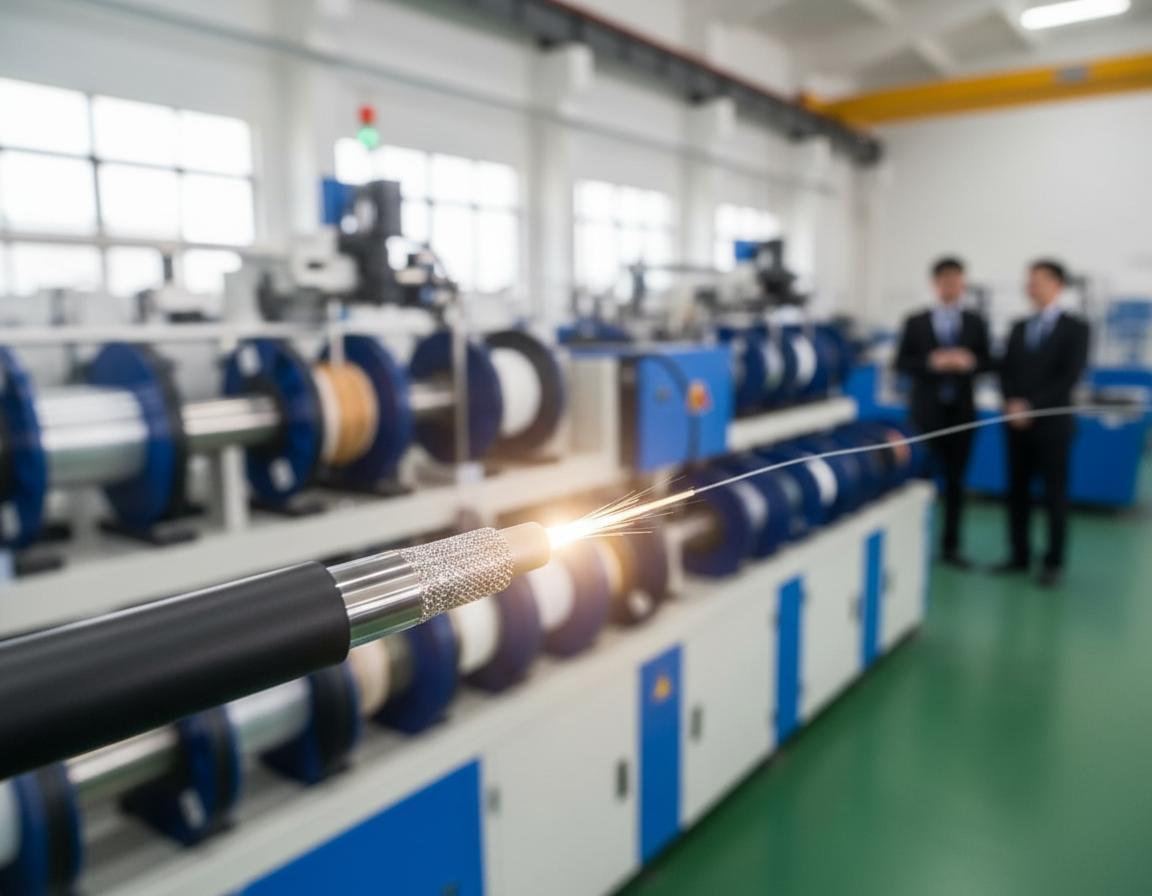

The FTTH Cable Production line is an integrated set of modules that converts fiber optic glass into completed drop and distribution cable products with reliable uniform quality.
Compact Fiber Unit
This overview helps factory managers, production engineers, purchasing teams, and learners in the United States market who review how factory manufacturing systems turns delicate fiber into durable cables for service networks and communications infrastructure.
At its core, the full-chain objective is straightforward: shield the fiber, maintain low optical loss, add strength for installation, and deliver a product that withstands inside and outside exposure.
Expert equipment means stable tension control, coordinated drive systems, defined process windows, and clear, auditable documentation for acceptance testing. This guide helps match the right line configuration, materials, and testing plan to the intended product instead of ordering equipment first and backfilling requirements afterward.
Readers will trace steps such as fiber preparation, buffering/coating, stranding, strength-member integration, jacketing (outer sheath extrusion), optional armor integration, and final testing and packaging.
Key points: A well-specified line cuts defects and keeps delivery schedules predictable. Choose process alignment before purchasing machines to avoid wasted time and expense.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution needs meet factory reality.
Modern fiber manufacturing lines stitch delicate glass into finished products used in United States broadband buildouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers prioritize repeatable handling and standards-based output.
Core Modules & Material Flow
Material moves through a clear sequence: pay-off feed → guiding + tensioning → secondary coating/color application → organization / SZ stranding → strength member feed → jacketing (sheathing) → cooling/curing → take-up and testing.
Modules And Outcomes
Stable fiber handling reduces attenuation and preserves data and communication integrity. Consistent jacketing aids installation and connector preparation. In-line monitors detect loss events before reels leave the line.
- Indoor vs. outdoor use: different jacket compounds and buffering needs.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should view lines as modular. Plants add armoring or skip steps to fit the product type. Throughput limits come from curing and dimensional control, not just motor speed.
Define Product And Data Standards Before Buying Equipment
Begin with a clear product map that specifies the cable type, core count, intended service environment, and target user scenarios. Early definition limits which modules the line needs, from tight-buffer units to SZ stranding modules and jacket extrusion.
Select Standards, Measurable Targets
Choose fiber standards such as ITU-T G.652D single-mode or bend-insensitive G.657A1/A2 based on required bend performance and route constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before selecting vendors.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Define attenuation (loss) budgets and mechanical strength targets to guide material selection.
- List required materials (buffer polymers, jacket compounds) and verify U.S. sourcing availability.
Data Standards, Traceability & Validation
Translate targets into factory information: captured process variables, batch traceability, and required customer test reports for acceptance. Plan R&D pilot runs to validate settings and reduce scale-up time.
Fiber Coloring Machine
| Goal | Factory Implication | Typical Response |
|---|---|---|
| Low attenuation | Tension + alignment control | In-line attenuation checks |
| Strong mechanical performance | Strength-element selection | Aramid/metal integration |
| Bend-tolerant performance | Fiber selection | Adopt G.657 variants |
Build Quality Into Optical Fiber: Core, Cladding, Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design define the boundaries for loss.
The core and cladding make up the core layer structure: a solid ultra-pure silica core carries light while a lower-index cladding keeps it confined. This geometry is the foundation for low-loss transmission and stable optic behavior in finished cables.
From Preform To Drawn Fiber
Manufacturing starts with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that increase attenuation.
Drawing pulls the glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. One blank can produce roughly 5 km of fiber, so process stability saves time and cost.
Primary Coating & Color Coding
The primary coating protects against scratches and handling damage; it is not the main tensile element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: manage diameter and tension for low attenuation.
- Coating and color: protect and identify each fiber.
| Layer Element | Purpose | Buyer Verification |
|---|---|---|
| Fiber core | Transmit light with minimal attenuation | Define purity and loss specifications |
| Cladding layer | Confine light and control modal behavior | Confirm refractive index profile and geometry |
| Primary coating layer | Scratch protection; color identification | Verify adhesion and color coding |
FTTH Cable Production: Step By Step Line Setup From Buffering To Sheathing
A workable line setup moves each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and one-to-twelve-channel color coding for identification and traceability. Stable UV curing and web tension reduce mix-ups and rework.
Buffering, Materials
Tight buffering (600–900 µm) protects handling and simplifies connector work. Choosing Hytrel, PVC, or LSZH changes flexibility, temperature range, and flame/smoke behavior.
SZ Stranding & Organization
SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and reduces attenuation risk.
Strength Members, Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing the fibers during installation.
Next comes outer jacket extrusion with PVC, PE, or LSZH. Speeds typically range 60–90 m/min and require tight OD and concentricity control.
Armoring And Control Points
If crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Key Control | Typical Value |
|---|---|---|
| Secondary coating | UV curing and tension | ≈250 µm, consistent cure |
| Tight buffer stage | Material selection | 600–900 µm (Hytrel, PVC, LSZH) |
| Sheathing | OD/concentricity | 60–90 m/min typical |
Optimize Production Speed And Process Control With Modern Automation
As factories chase 24/7 output, synchronized controls and tension systems form the backbone of reliable manufacturing.
PLC, HMI, Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and log process information. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Fiber Draw Tower
Match Speed To Curing And Dimensional Control
Line speed often tops out when curing, cooling, or extrusion dimensional control can’t keep pace. UV cure completeness, water trough stability, and chill capacity set the true ceiling.
Layout, Changeover & Procurement
Layout affects uptime: proper pay-off/take-up placement plus protected fiber paths reduce damage and shorten changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Priority | Operational Outcome | Typical Standard |
|---|---|---|
| Synchronization | Reduced scrap and repeatable runs | Siemens PLC/HMI platform |
| Tension regulation | Protects fiber; keeps loss stable | High-accuracy closed-loop |
| Layout/changeover | Shorter downtime | Quick-change tooling + staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control convert raw fiber into reliable, field-ready cable reels.
Start with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks & Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss readings often indicate handling damage, microbends, or contamination.
Return loss checks target reflections that can affect sensitive links and tight network margins.
Mechanical & Environmental Validation
- Tensile pull tests validate strength members and safe installation loads.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Test Type | Purpose | Typical Decision |
|---|---|---|
| Loss test | Measure attenuation per km | Pass/fail vs. spec |
| Mechanical | Validate pull, crush, bend | Installation suitability rating |
| Environmental tests | Simulate real field conditions | Durability confirmation |
Traceability links raw material lots, in-line data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Final Thoughts
A clear manufacturing plan links product targets to the exact line modules and control limits required for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to hold speed, cut scrap, and make delivery predictable in U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before you request quotes or trials.
